Electronic Speed Controls (ESCs)
ArduSub is designed to work with brushless and brushed Electronic Speed Controls (ESCs) to control motors and thrusters. A corresponding ESC will need to be used for a similar motor type. For example if a brushless thruster is used, then a brushless ESC will be needed.
ArduPilot does not support controlling both brushed and brushless motors at the same time.
The minimum requirements for an ESC of either type are:
- Bi-directional control - they operate in forward and reverse (most ESCS for UAVs and hobby drones only operate in one direction)
- Controlled by a PWM input where:
- 1900 us is full forward
- 1500 us is stopped
- 1100 us is full reverse
Brushless ESCs

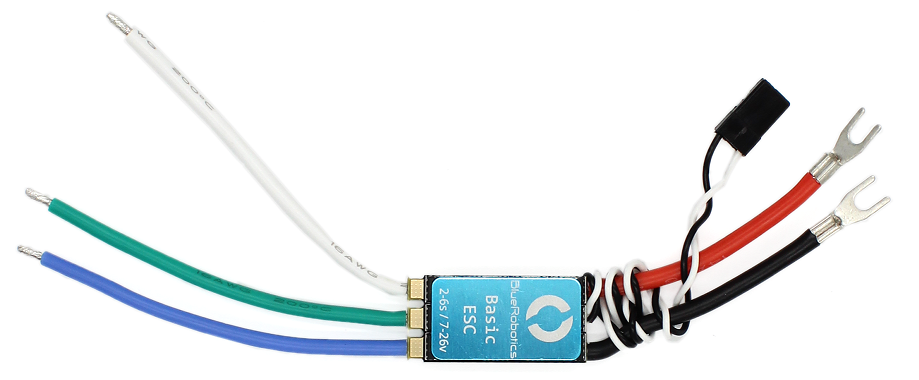

The following brushless ESCs are supported for use with ArduSub:
Brushed ESCs
No brushed ESCs have been reported to be used with ArduSub, but here is the reference documentation from ArduPilot:
